FT-IR Interferogram Sampling Validation and Correction

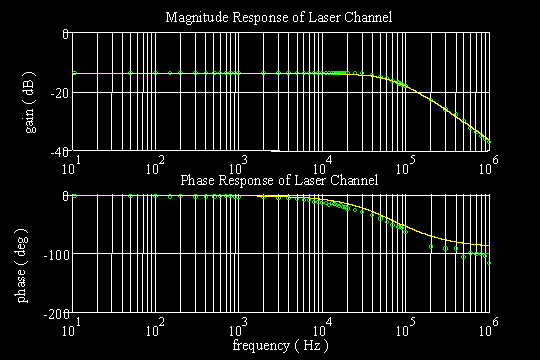

The green circles indicate the results obtained for the laser channel. The yellow line is a fit of a single pole filter with a rolloff at 75 kHz. Because of the single pole the phase goes through an excursion of 90 degrees during rolloff.
